Product information "Ring LED magnifier incl. fixation"

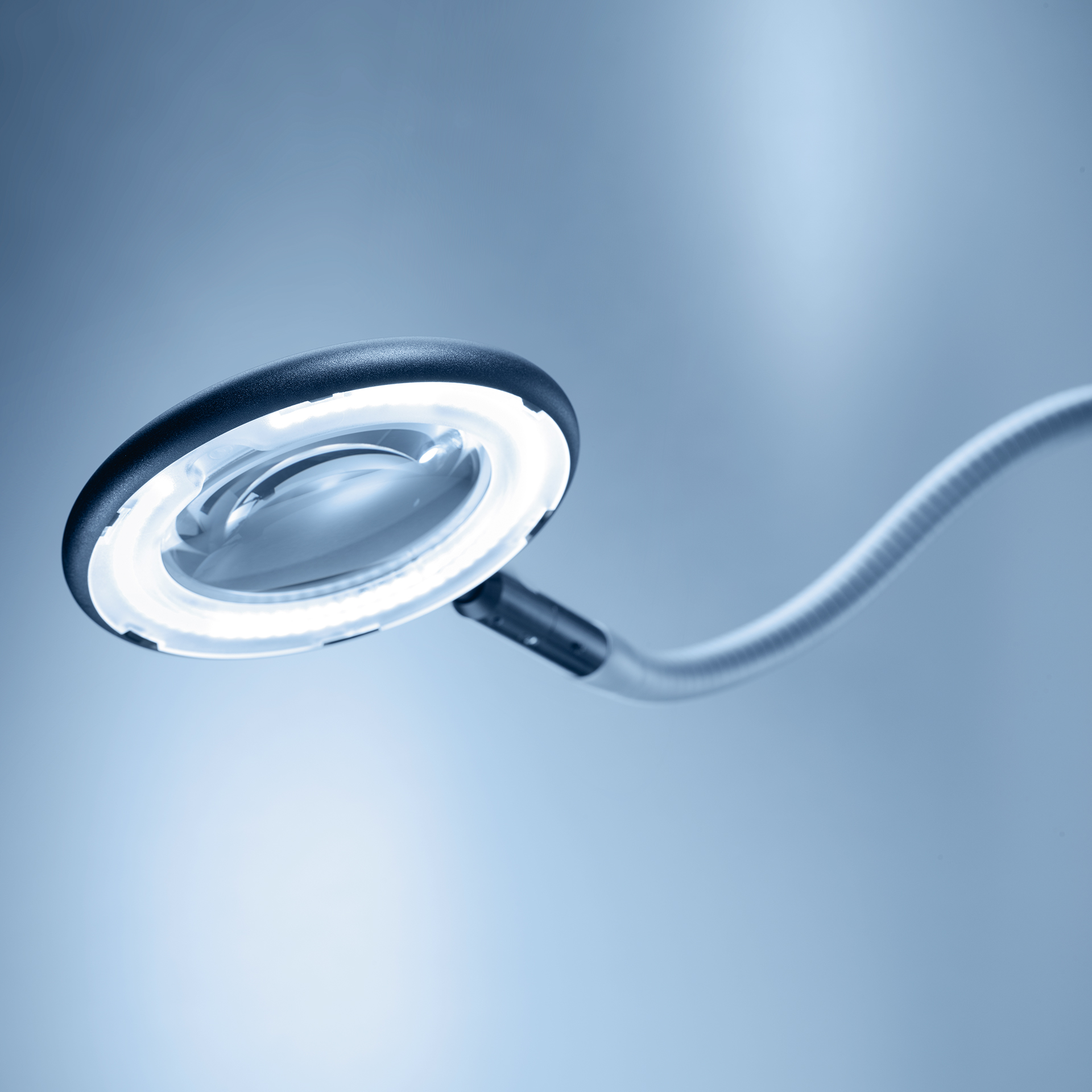

The RING LED is the lighting solution for professional use in podiatry.
The use of 63 innovative LEDs, instead of a conventional fluorescent tube offers a decisive added value: 4 times more light per watt and thus significantly lower energy consumption.
In addition, the LEDs have a minimum service life of 50,000 working hours. This means 6 years of non-stop light or 100% illuminance without maintenance costs.

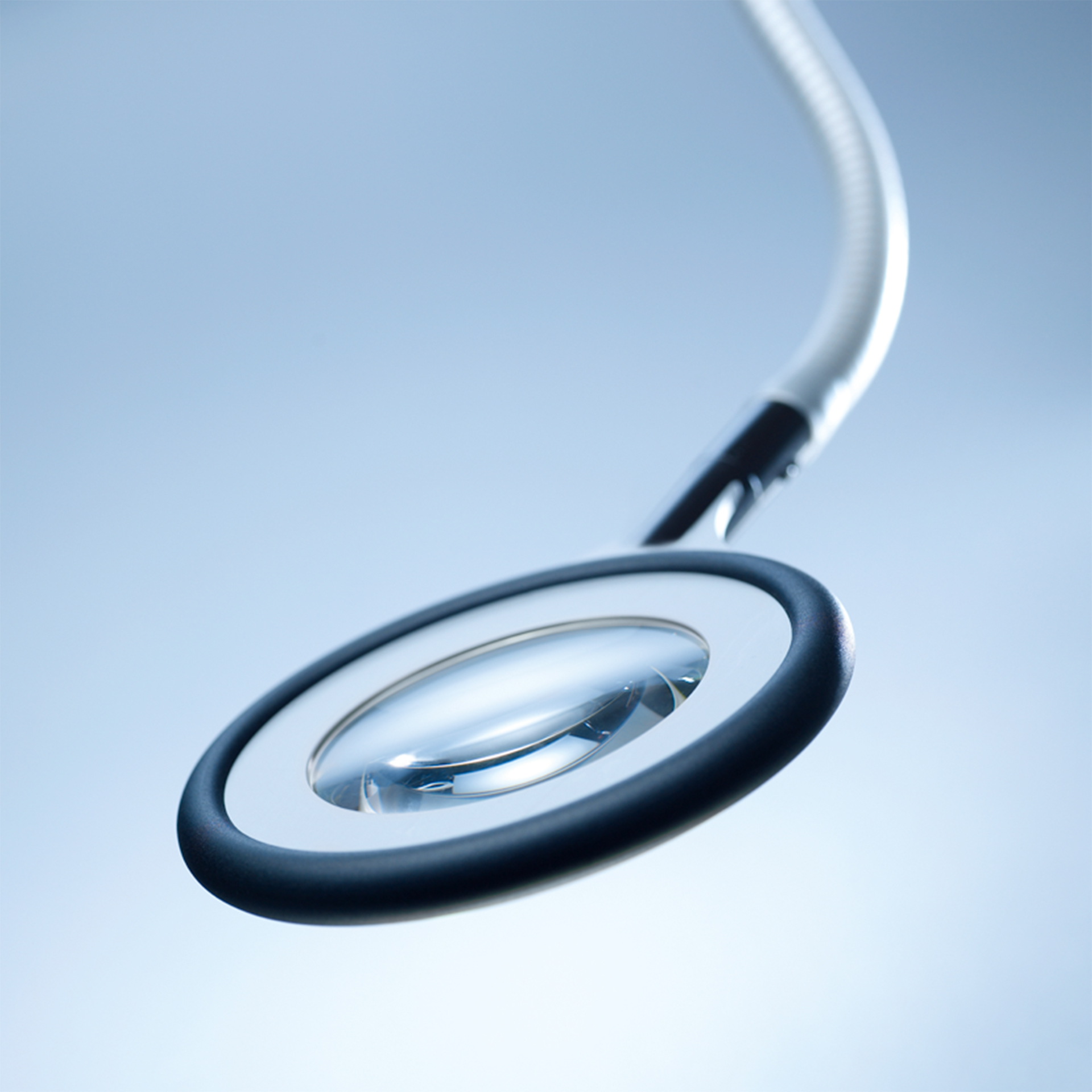

The RING LED has a distortion-free Eschbach plastic lens with a diameter of 72 mm and a power of 6 diopters. This results in a magnification of 2.5 times. The hard coating of the lens effectively prevents scratches.
The RING LED is virtually indestructible. The lamp head, stand tube and flexible tube are made of robust metal. The LED and circuit board are insensitive to vibrations. And the closed luminaire head also allows easy and quick cleaning. The soft-touch sensor developed by Waldmann is integrated into the luminaire head and is therefore easily accessible by hand. A gentle touch switches the magnifying luminaire on and off.
Technical data:
Stand: 23.3 cm
Gooseneck: 40 cm
63 x light emitting diode (LED)
Color temperature neutral white 4.000° K
Glare control via matte shade
Hard-coated plastic lens Ø 72 mm with 6 diopters
Housing made of colorless anodized aluminum and black plastic, acrylic shade
Head joint for individual adjustments
Metal flexible tube
With sensor button in the lamp head
Protection class IP20; protection class II
Weight 1,1 KG
Spigot Ø: 16mm
Power cord: 2,3m, plug-in transformer
6W / 230V / 50-60Hz
Supplied with 2m power cord and plug-in power supply with plug type CEE 7 / 16 (Europlug), BS 1363 and NEMA 1-15P

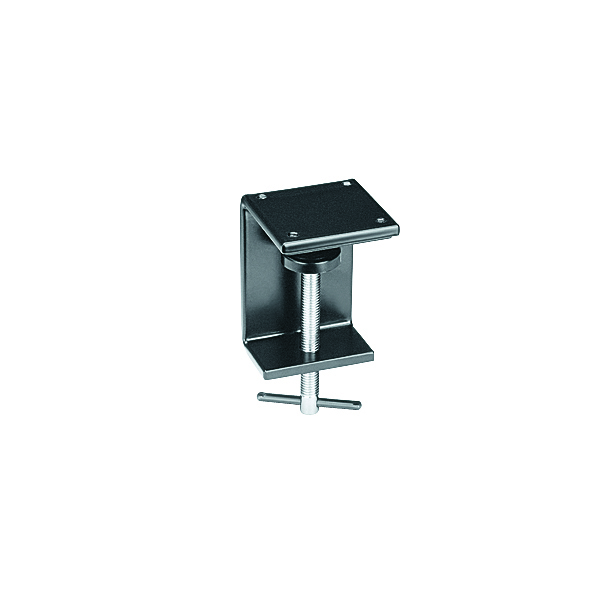

Various mountings as accessories
Weight 1,1 KG
Country of origin: Germany
EU product code: 9452099
The use of 63 innovative LEDs, instead of a conventional fluorescent tube offers a decisive added value: 4 times more light per watt and thus significantly lower energy consumption.
In addition, the LEDs have a minimum service life of 50,000 working hours. This means 6 years of non-stop light or 100% illuminance without maintenance costs.
The RING LED has a distortion-free Eschbach plastic lens with a diameter of 72 mm and a power of 6 diopters. This results in a magnification of 2.5 times. The hard coating of the lens effectively prevents scratches.
The RING LED is virtually indestructible. The lamp head, stand tube and flexible tube are made of robust metal. The LED and circuit board are insensitive to vibrations. And the closed luminaire head also allows easy and quick cleaning. The soft-touch sensor developed by Waldmann is integrated into the luminaire head and is therefore easily accessible by hand. A gentle touch switches the magnifying luminaire on and off.
Technical data:
Stand: 23.3 cm
Gooseneck: 40 cm
63 x light emitting diode (LED)
Color temperature neutral white 4.000° K
Glare control via matte shade
Hard-coated plastic lens Ø 72 mm with 6 diopters
Housing made of colorless anodized aluminum and black plastic, acrylic shade
Head joint for individual adjustments
Metal flexible tube
With sensor button in the lamp head
Protection class IP20; protection class II
Weight 1,1 KG
Spigot Ø: 16mm
Power cord: 2,3m, plug-in transformer
6W / 230V / 50-60Hz
Supplied with 2m power cord and plug-in power supply with plug type CEE 7 / 16 (Europlug), BS 1363 and NEMA 1-15P
Various mountings as accessories
Weight 1,1 KG
Country of origin: Germany
EU product code: 9452099
Anschlussart: | Eurostecker, ca 2 m Anschlussleitung mit Steckernetzteil |
---|---|
Anschlusswert: | 100-240 V, 50/60 Hz |
Aufnahme/Befestigung: | Pin/Zapfen 16 mm |
Farbtemperatur: | 4.000 K, Neutralweiß |
Farbwiedergabe: | Ra >90 |
Leistungsaufnahme: | ca. 6 W |
Leuchtmittel: | LED |
Lichtmodi: | dimmbar stufenlos |
Lichtstrom: | ca. 420 lm |
Linse Durchmesser: | Ø 72 mm |
Linse Material: | Kunststofflinse |
Schutzart: | IP20 |
Schutzklasse: | II |
Vergrößerung (Dioptrien): | 6,0 dpt. (2,5 x Vergrößerung) |
